Product Description


Material:Aluminum
Board Thickness: 1.6mm
Copper Thickness: 70um
Soldermask Color:White(Taiyo Soldermask)
Silkscreen Color: Black
Surface Technics: ENIG
Min Holes:1.0mm

Min Line Width and space:0.5mm/0.5mm

Outline: Routing

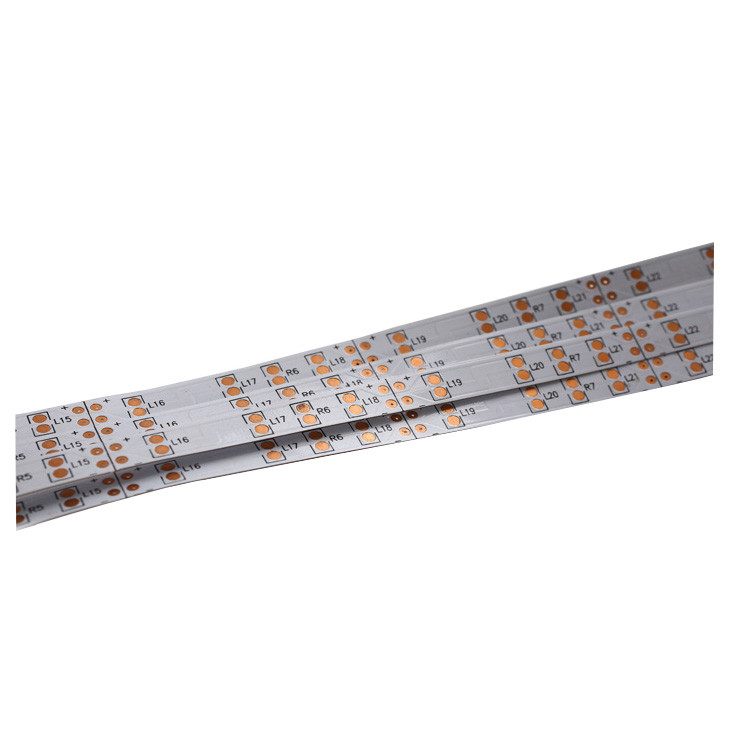

RGB With 90 LEDs


Aluminium PCB Capability:

NO

Item





Capability

1

Product Type



Al Clad PCB 1 layer

2

Maximum Panel size



20"*24"(1170mm*600mm)



3

Copper thickness



0.5oz, 1oz, 2oz, 3oz









4

Dielectric Thickness



0.05mm, 0.075mm, 0.1mm, 0.15mm, 0.2mm



(to Substrate)















5

Substrate Core Thickness



0.4mm,0.6mm,0.8mm,1.0mm,1.2mm,1.5mm,2.0mm,3.0mm,3.2mm

























6

Finished Board Thickness



0.4mm To 4.0mm













7

Thickness Tolerance



+/- 10%











8

Aluminum Machining



Drilling,Tapping,Milling, Routing, Die-Punching, break-off tab







available























9

Min. Finish hole size



0.25mm











10

Max. working voltage



2.5k VDC(0.075mm Dielectric) 3.75k VDC(0.15mm Dielectric)











11

Min. Track Width



0.2mm (8mils)













12

Min. Track gap



0.2mm (8mils)













13

Min. SMD pad pitch



0.2mm (8mils)











14

Surface Finishing



HASL, HASLLeadfree, Immersion gold, OSP









15

Solder mask color



White, LED light special White, Black, MATT Black, others







Available





















16

Legend color



Black, White, others Available





17

E-test



YES













18

Rosh



YES











19

Reference Standard



IPC-A-600G Class 2









20

Special holes



Spot facing, Cup holes









21

Data Input



Gerbers, AutoCad, Cam350,







PROTEL99SE,PROTEL,DXP,POWER PCB.
